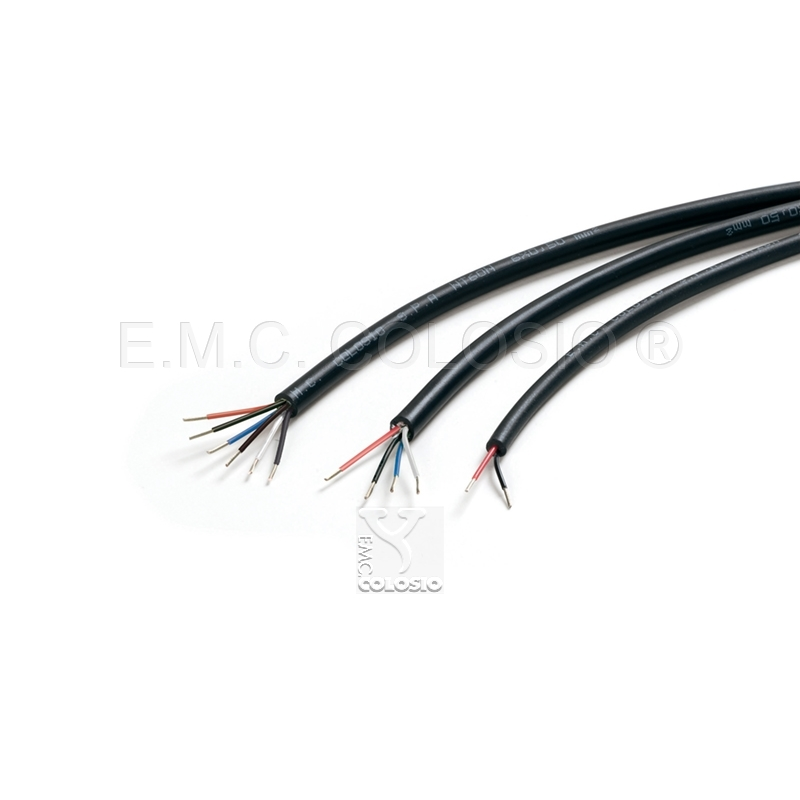

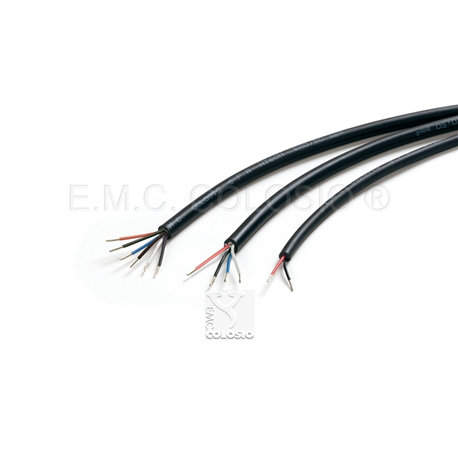

  FEP + Rubber NT--N x LEDs

  || 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000

  N

  tondo

  sn

  NT--N x LEDs

  2008





  Type of cable insulation:	FEP + Rubber for LEDs
  Working temperature of the sheath:	T60°C (T90°C)
  Working temperature inner cores:	T180°C
  Type of strand:	Copper tin-plated flexible
  Working voltage:	300/500V
  Cable for Outdoor use (usable also for permanent immersion in water).



  Code	Sections / AWG:	Colours of the cores	Diameters / Dimensions (mm):
  NT20N	2 x 0.50 mm²	RN	5.3	::NT20N::	NT20N|5.3||2|RN|N
  NTQ0N	4 x 0.50 mm²	RNLV	5.8	::NTQ0N::	NTQ0N|5.8||4|RNLV|N
  NT60N	6 x 0.50 mm²	R R/N L L/N V V/N	6.9	::NT60N::	NT60N|6.9||6|R R/N L L/N V V/N|N
  NTE0N	6 x 0.50 mm²	RNLVBE	6.9	::NTE0N::	NTE0N|6.9||6|RNLVBE|N

  Available colours:

  • N - Black

  Colours of the cores

  R = Red
  N = Black
  L = Blue
  V = Green
  =
  / =
  B = White
  E = Grey






  Download PDF

  Download DXF
